Automatic High Speed Linear Shrink Sleeve Applicator

Send Inquiry

Request To Call Back

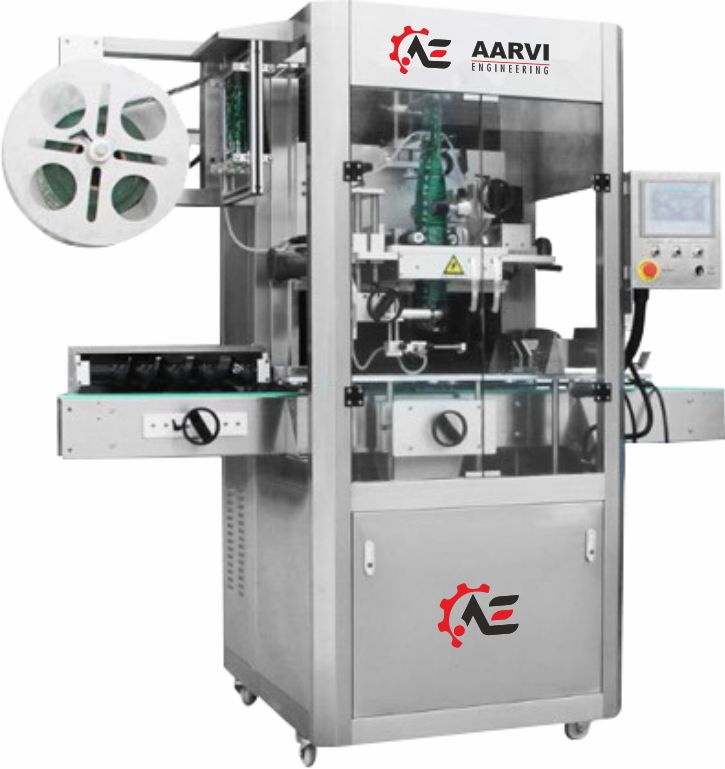

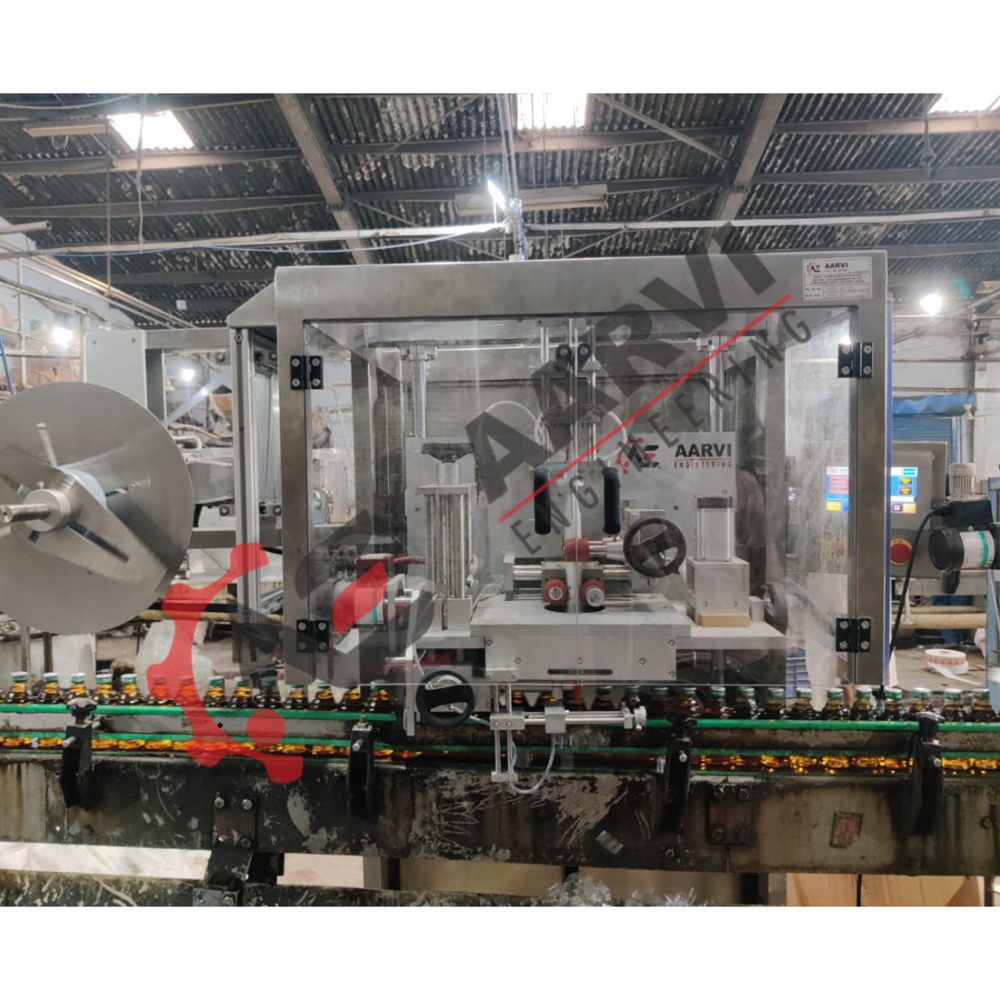

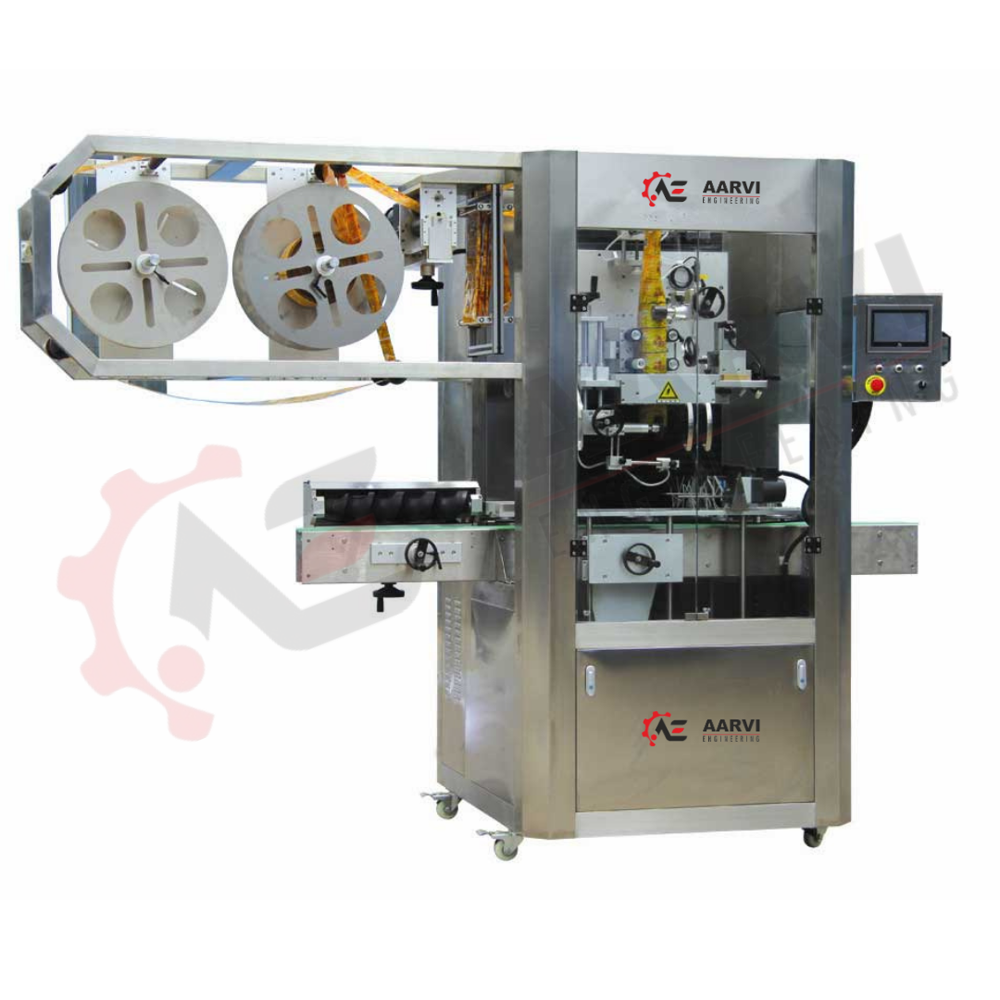

Automatic High Speed Linear Shrink Sleeve Applicator

Name: Automatic High Speed Linear Shrink Sleeve Applicator
Brand: AARVI ENGINEERING
Price: 1350000 INR
Availability: InStock

Price 1350000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

Automatic High Speed Linear Shrink Sleeve Applicator Specification

Noise Level
<75 dB

Application
Sleeve Label Application on Bottles

Power Supply
Single Phase AC

Features
Automatic Feeding, Precise Cutting

Usage
PET Bottle Labeling

Filling Range
Customizable

Type
Linear Shrink Sleeve Applicator

Material
SS304

Feature
High Speed, Accurate Placement

Auxiliary Packaging Machine Type
Labeling Machine

Capacity
100 BPM

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Based

Drive Type
Servo Motor

Power
2 kW

Voltage
230 V

Weight (kg)
Approx. 350 Kg

Dimension (L*W*H)
2200 x 950 x 2000 mm

Color
Stainless Steel Finish

Sealing Type
Shrink Tunnel

Safety Feature
Emergency Stop

Conveyor Speed
Adjustable

Operation
User Friendly Panel

Max Bottle Height
180-320 mm

Sensors
Photoelectric Sensors

Max Bottle Diameter
50-100 mm

Bottle Shape
Round, Oval

Cutter Type
Rotary Blade

Label Material
PVC/PET/OPS

Finish
Corrosion Resistant

Sleeve Thickness
0.035-0.08 mm

Changeover Time
Minimal

Automatic High Speed Linear Shrink Sleeve Applicator Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
2-3 Days

Main Domestic Market
All India

About Automatic High Speed Linear Shrink Sleeve Applicator

Automatic High Speed Linear Shrink Sleeve Applicator is the one used for applying or inserting shrink sleeve label on the container, caps, plastic jars, twisters, plugs, multilayer plastic container & jerry cans for applying heat shrinkable sleeve label or neckbands sleeve most suitable for food packages ranging from yogurt cups, bottles, margarine, etc. Automatic High Speed Linear Shrink Sleeve Applicator can be availed from us at feasible rates.

Specification

Body Material	Stainless Steel
Brand	Aarvi Engineering
Voltage	230V
Speed	300 rpm
Frequency	50Hz
Phase	Single Phase
Automation Grade	Automatic
Material	Stainless Steel
Change Parts	Mandrel Sleeve
Sleeve Roll Inner Dia	115mm
Thickness of Sleeve	0.035-0.75 mm
Sleeve Roll Outer Diameter	400 mm
Sleeve Roll Inner Diameter	Greater than 100 mm
SS Grade	SS304
Product Size Quantity	Up to 1000 ml
Output	Up To 100/min
Machine Dimension	1500x2300x800mm
Length of Sleeve	25-250 mm
Container Max Height	28,120,320 mm

Efficient and Versatile Performance

This shrink sleeve applicator effortlessly adapts to a wide range of bottle shapes and sizes, from round to oval, within specified diameters and heights. It offers customizable filling and rapid changeover, supporting fast-paced production environments with up to 100 bottles labeled per minute. The machine excels in ensuring accurate, consistent sleeve application, reducing labor requirements and maximizing throughput across diverse packaging operations.

Robust Design and User-Friendly Operation

Manufactured with SS304 stainless steel for durability and corrosion resistance, the applicator is built to withstand stringent industrial environments. The user-friendly panel simplifies operation and setup, while the rotary blade and servo motor system guarantee precise, efficient cutting. Safety is emphasized with an emergency stop, and maintenance is streamlined thanks to thoughtful engineering and minimal downtime requirements.

FAQ's of Automatic High Speed Linear Shrink Sleeve Applicator:

Q: How does the shrink sleeve applicator ensure accurate placement of labels on bottles?

A: The applicator uses a combination of servo-driven control, rotary cutting system, and photoelectric sensors to guarantee precise sleeve positioning and placement on round or oval bottles. The PLC-based system maintains consistent alignment at high speeds, reducing errors and ensuring immaculate labeling results.

Q: What types of bottles and labels can this machine handle?

A: This machine supports round and oval bottle shapes with diameters ranging from 50 to 100 mm and heights between 180 and 320 mm. It accommodates sleeves made from PVC, PET, and OPS materials with thicknesses from 0.035 to 0.08 mm, making it adaptable to a wide range of labeling needs in the beverage, cosmetic, and pharmaceutical industries.

Q: When is changeover required, and how long does it take?

A: Changeover is necessary when switching to different bottle sizes, shapes, or label materials. This machine is designed for minimal changeover time thanks to its ergonomic construction and intuitive controls, enabling operators to quickly move between different production runs without significant downtime.

Q: Where can the shrink sleeve applicator be installed within a production line?

A: The compact footprint (2200 x 950 x 2000 mm) and adjustable conveyor speed allow it to be seamlessly integrated into most automated packaging lines in bottling plants, contract packaging facilities, and manufacturing sites. Its corrosion-resistant stainless steel construction is suitable for a variety of industrial settings.

Q: What is the typical process for applying shrink sleeves using this machine?

A: Bottles are automatically fed onto the conveyor, where pre-cut shrink sleeves are precisely applied using a rotary blade system. Photoelectric sensors ensure correct placement, and the bottles proceed through a shrink tunnel to complete the labeling. The process is efficient, automated, and managed through the user-friendly PLC panel.

Q: How does the operator benefit from the user-friendly panel and safety features?

A: The intuitive interface allows for straightforward operation, real-time monitoring, and quick adjustments. Safety is prioritized with features like emergency stop and low noise operation (<75 dB), ensuring a safer and more comfortable working environment for operators.
